TBS Unify Pro32 DP (MMCX) 5.8GHz VTX
Price range
Lowest buyable $25.74 at FPV Rotors. Next $42.98 at FPV Battery Frame. Gap $17.24 (40%).
Lowest $25.74 · Average $50.75 · Highest $64.99 USD. In-stock, preorder, and backorder listings only. Out-of-stock prices are left out.
Last 7 days.
Online Stores
status
price
store
notify
Description

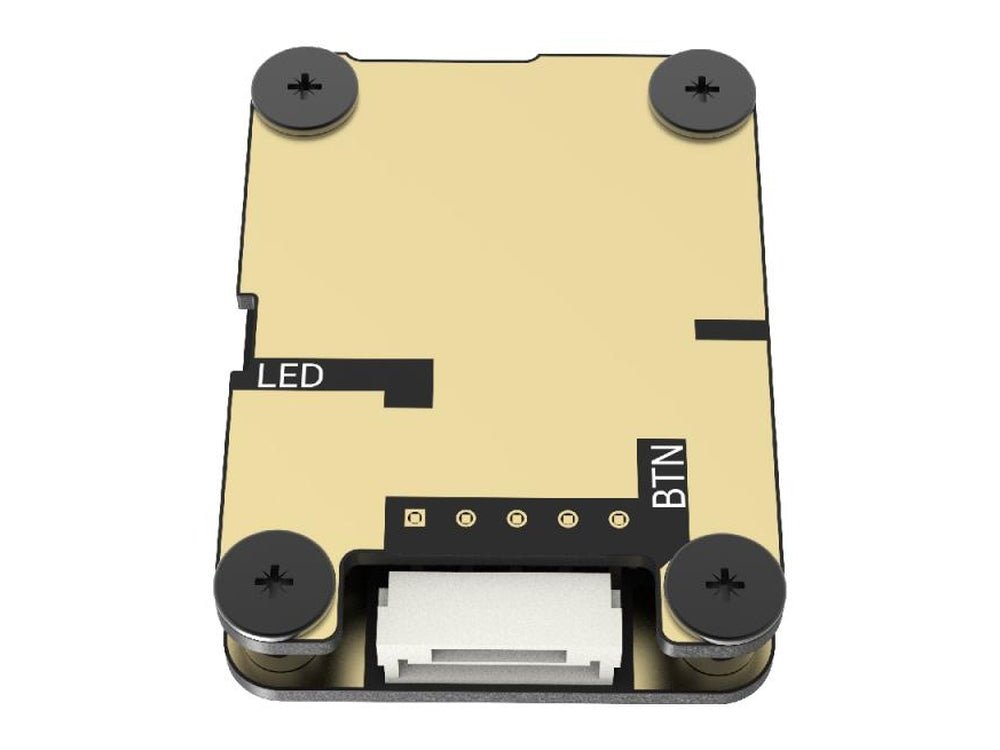

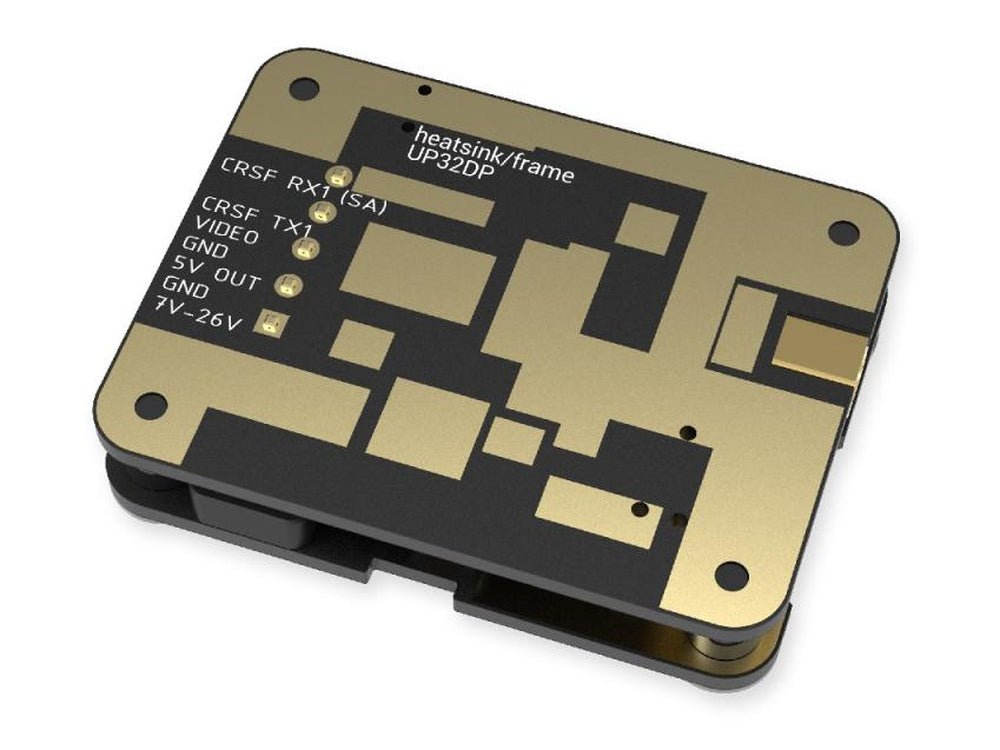

The TBS UNIFY PRO32 DP (MMCX) is a high-quality video transmitter (VTx) designed for use in FPV drones. It comes with several features like improved robustness, decreased size, and power consumption. Enhanced performance and durability through advanced heat dissipation which requires no additional heatsink or fan.
Features:
- Frequency range: 4990 MHz - 6030 MHz
- OSD configuration using TBS Smart Audio 2.1
(via Betaflight, TBS Crossfire / Tracer or Ardupilot) - One button frequency and power setup
- LUA support for CRSF users
- MMCX connector
- 2-6S input
- Double noise filtering (>63dB SNR)
- Optimized heat dissipation, no heatsink required
- Optional matching circular polarized antenna available
Specifications:
- Operating Voltage: 6V-25V (2-6S)
- Video Input Impedance: 75 Ohm
- SNR: >63dBm
- Weight: 8.7g
- Dimensions; 37x28x10mm
- Antenna Connector: MMCX
- Video Format: NTSC/PAL
- Output Power: 14dBm (25mW), 20dBm (100mW), 26dBm (400mW)
Includes:
1x TBS Unify Pro32 DP (MMCX) 5.8GHz Video Transmitter
1x Silicone Cable
1x MMCX to SMA Pigtail
1x Heat Transfer Tape for easy FPV Drone Mounting
